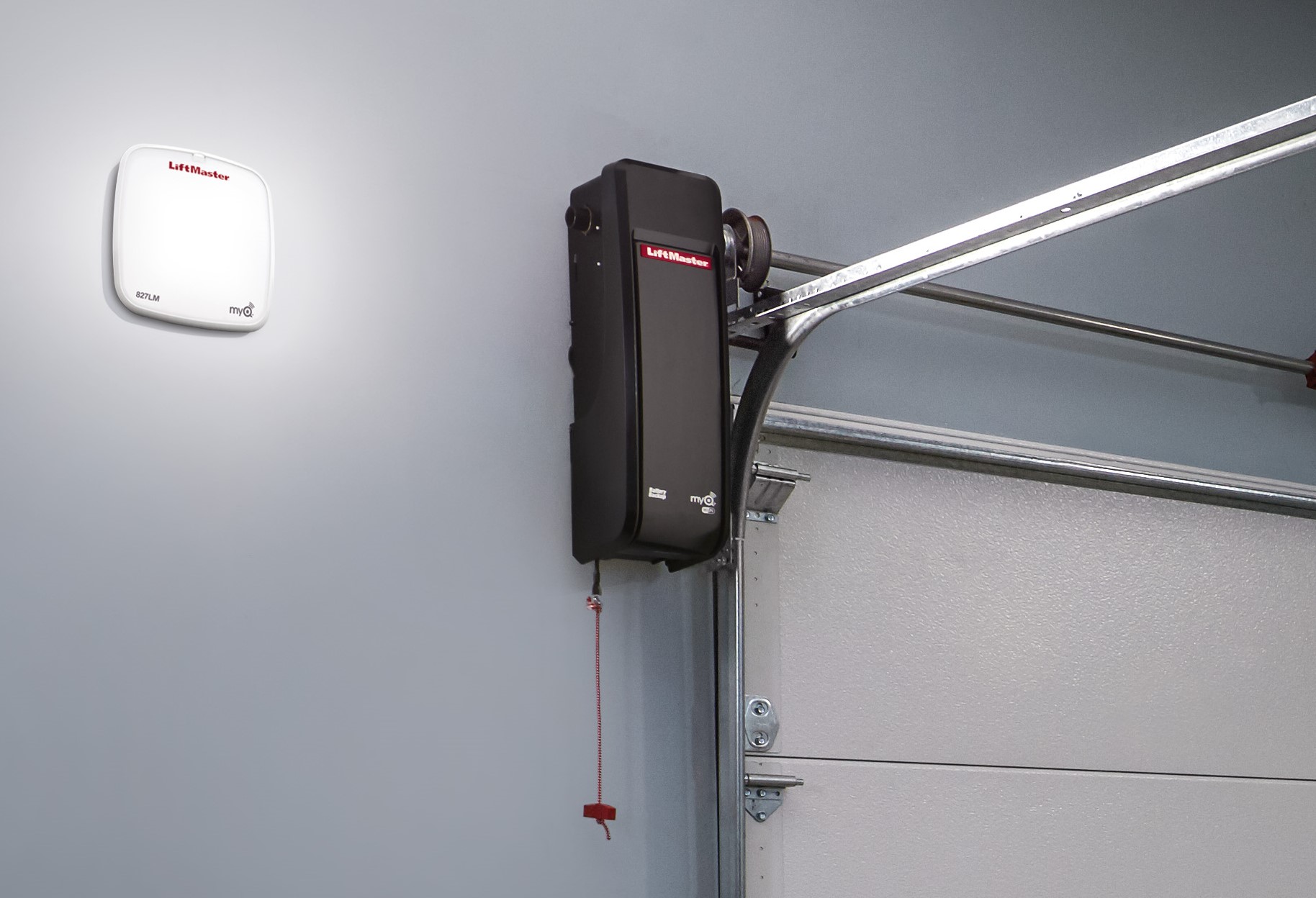

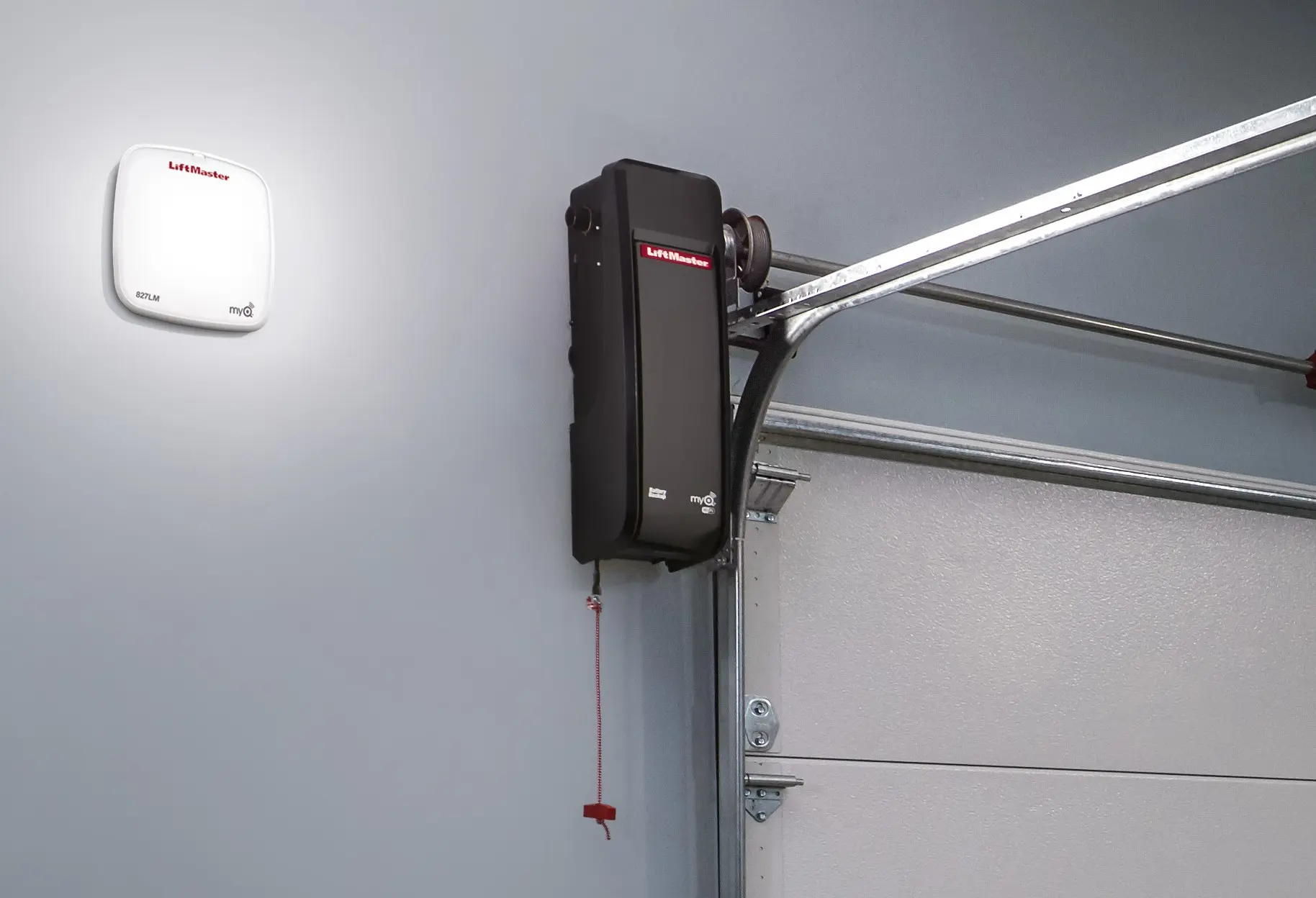

The LiftMaster 8500W is a wall-mounted opener with Wi-Fi, myQ control and battery backup for compatible sectional doors with a torsion bar. It is not a universal replacement for a ceiling opener. Check the door, shaft, drums, side clearance and safety-device mounting requirements before ordering or planning installation.
Compatibility and space checks
- A compatible 1 inch torsion bar and spring system; not an extension-spring or one-piece door.
- Standard-lift or qualifying high-lift sectional doors within the manual's limits, including up to 14 feet high, 18 feet wide and 180 square feet.
- Compatible cable drums; the manual excludes reverse-wound drums and limits tapered-drum size.
- At least 8.5 inches of side space, 3 inches above the shaft center and 2.5 inches between the wall and shaft center, subject to the full installation diagram.
- Space and structural support for the opener, automatic lock, cable tension monitor and photo-eyes.
These are screening checks from the 8500W installation manual, not a complete installation procedure. A technician must confirm all limits and that the door is balanced and moves freely.
What installation includes
- Check and repair the door mechanism before attaching an opener. Spring changes are technician work.
- Mount the opener and required lock, cable tension monitor, control and sensors according to the model manual.
- Connect the specified electrical supply and backup battery, then set travel and learned force.
- Test the lock, cable monitoring, photo-eyes, contact reversal and battery operation before normal use.
Never bypass the cable tension monitor or photo-eyes. A new outlet or fixed wiring should be handled by an electrician.
myQ and vehicle controls
The 8500W supports myQ app control and alerts. Do not assume it connects directly to Alexa or Google Home; check myQ's current supported partners for the feature you need. HomeLink compatibility depends on the vehicle generation and can require a bridge.
Beeping or backup trouble
Record the beep pattern and indicator or control-panel message before replacing anything. Backup battery status, unattended-close warnings and faults use different signals. Follow the manual's battery test; battery backup is limited and requires a charged, functioning battery.
Compare LiftMaster opener options, or call (916) 838-8182 for installation or service.
